D4 Delta2p Evolution (2020 John Middendorf portaledge design)
www.bigwallgear.com

D4 Delta2p Evolution (2020 John Middendorf portaledge design)

D4 portaledge Design

John Middendorf
Aug 1, 2021
Share this post
D4 Delta2p Evolution (2020 John Middendorf portaledge design)
www.bigwallgear.com

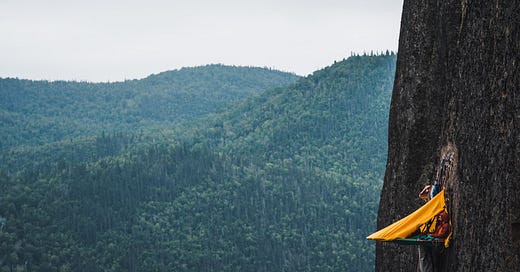

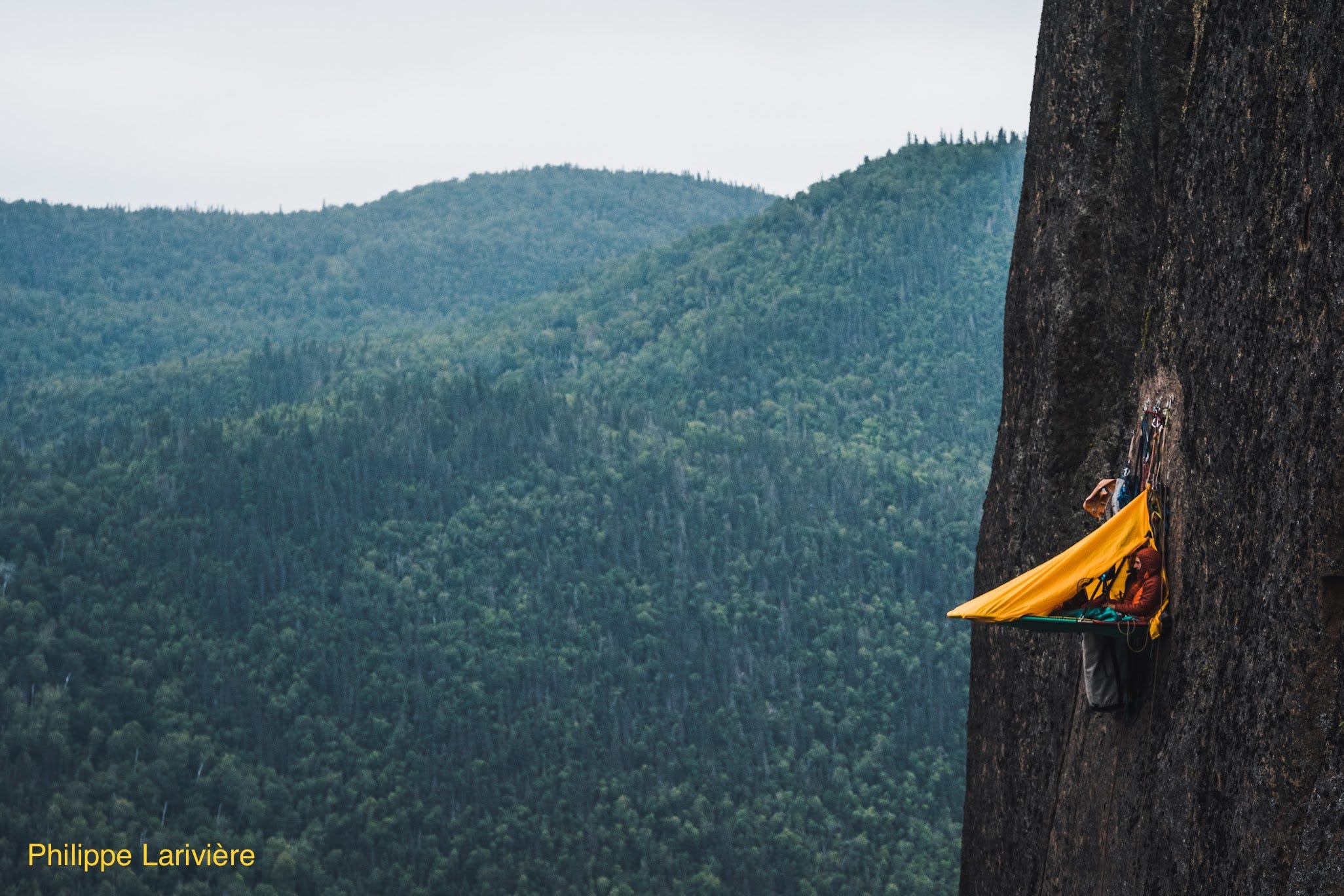

D4 Delta2p—the first “foot-out” portaledge design, 2020

Working out issues with this “foot-out” portaledge concept took some time and a marriage of various new technological developments like CAD/CAM, and this post will also provide tips for other innovators. In the meantime, see https://www.bigwalls.net/the-d4-story.html

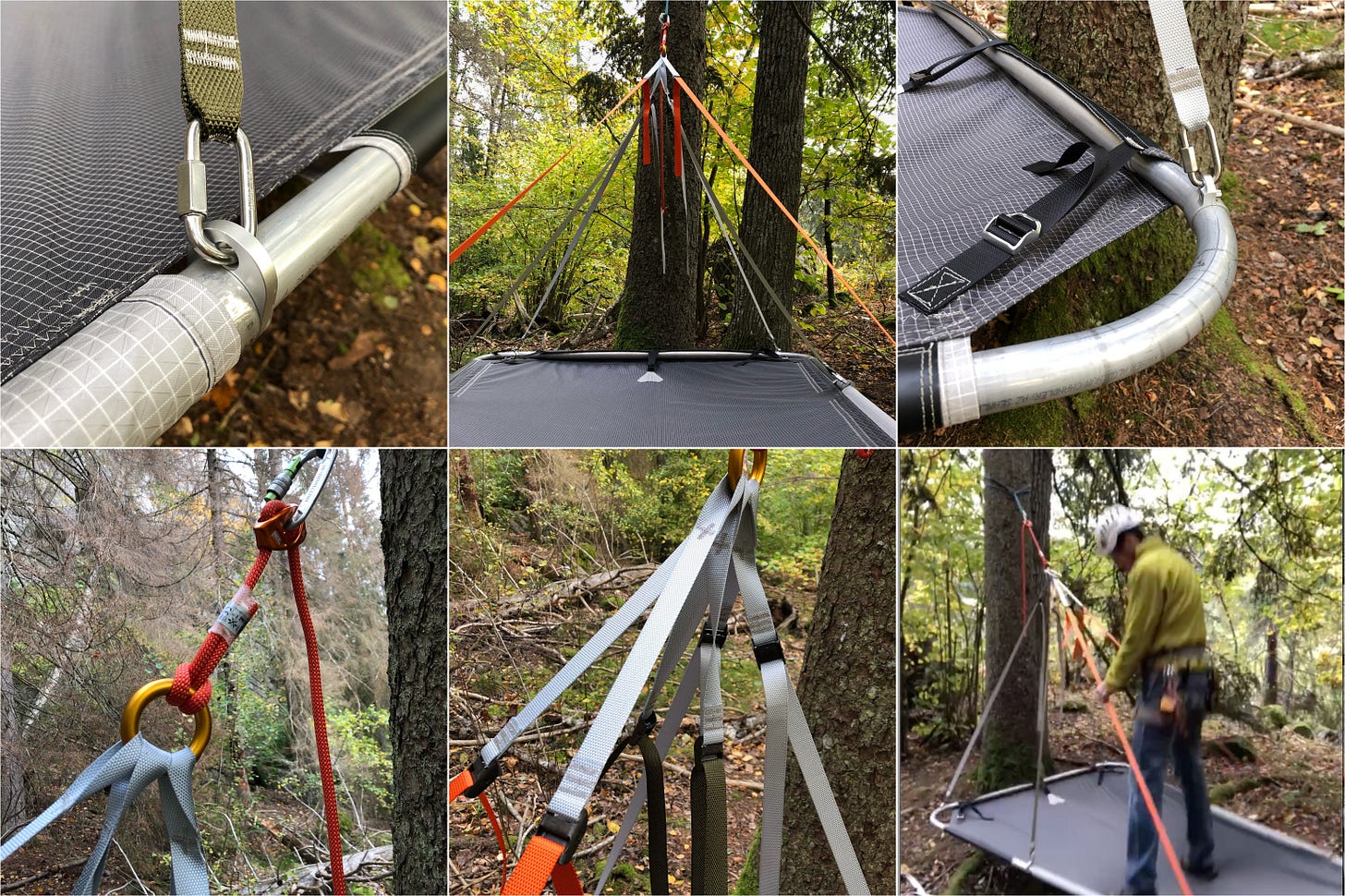

As of October, 2021, 32 D4 Delta2p’s have been produced in Tasmania by John Middendorf, Anna-Véronique L'hoest, Hanna Vasilades, Carl Hanson, Simon Bischoff, Danny and many others. Eight Delta2p’s went to expert product testers. Open Source design notes and plans on bigwalls.net

Manual for the Delta2p, with climber review: https://www.bigwalls.net/download/delta2p-manual-v2.pdf

Main D4 Delta2p page: https://www.bigwalls.net/d4-delta2p.html

The Evolution continues:

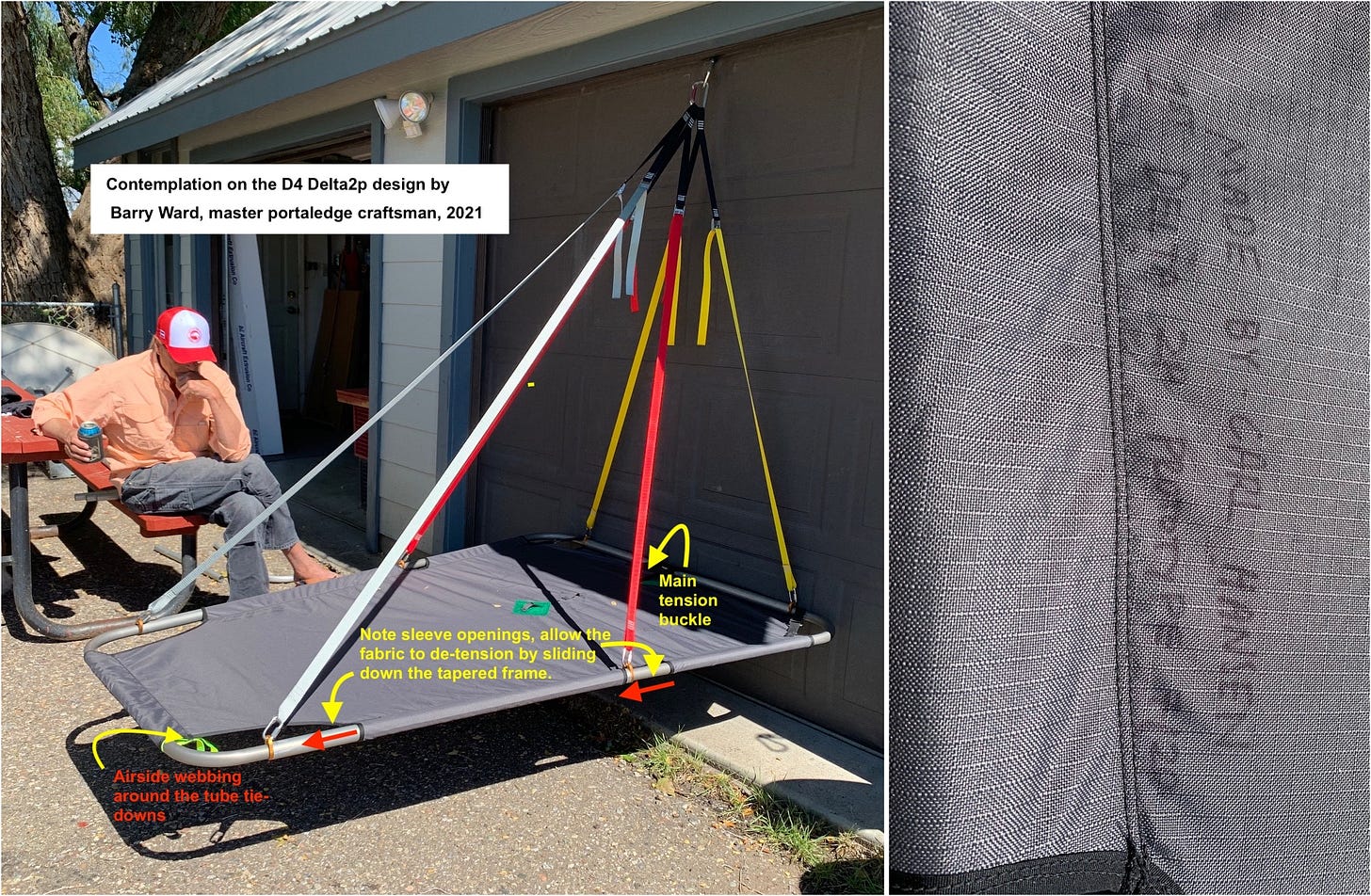

Barry Ward working on his Durango Sewing Solutions version 2021 http://d4portaledge.com
Aideer Climbing (Olle Hjort) 2021 version of the open source Delta2p design www.aideerclimbing.rocks

The original conception of the design

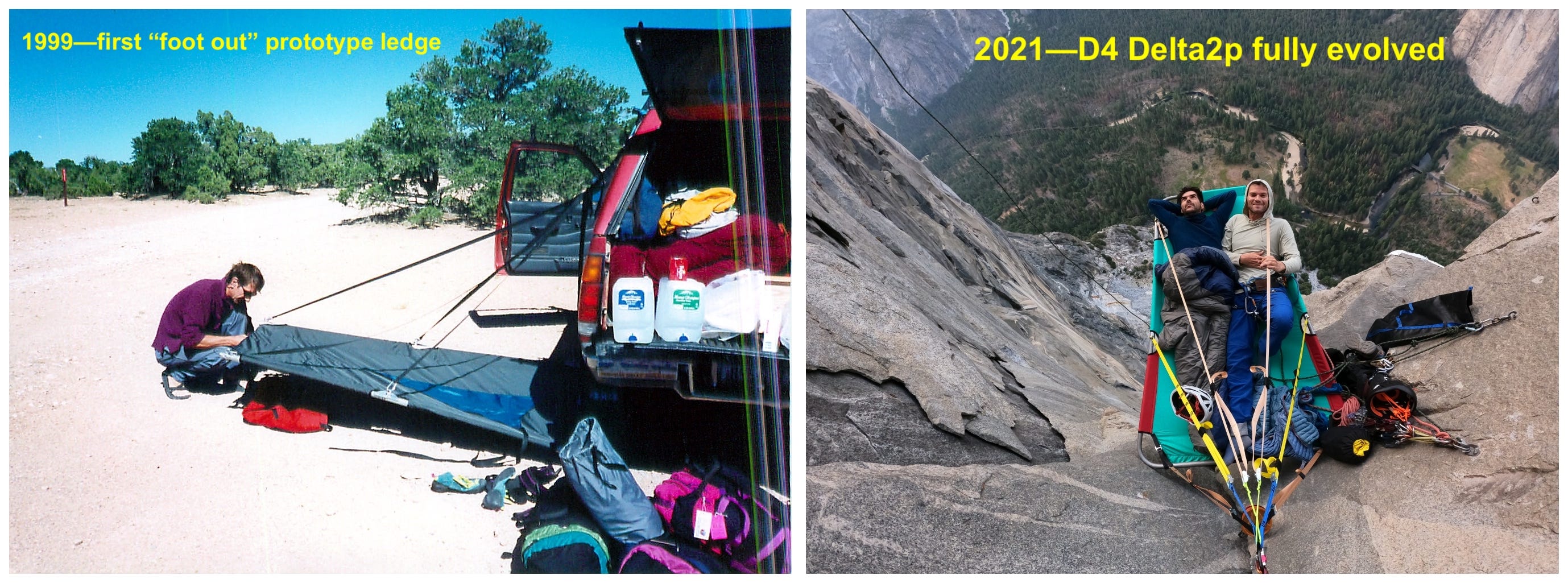

Original Concept for the “foot-out” portaledge dates back to 1999, after I lost my design role at a major outdoor gear company, I did a bit of consulting, but it was difficult to get the shop space and time to pursue the design for the next couple decades (while initially working half the year on the rivers of the southwest).

took 22 years to get back to it.

The original 1999/2000 design was a hinged design; however, hinges in portaledges tend to result in a wobbly frame, and it had flaws, namely that the wobble would cause the ledge to creep up the wall (also the suspension points were not optimised):

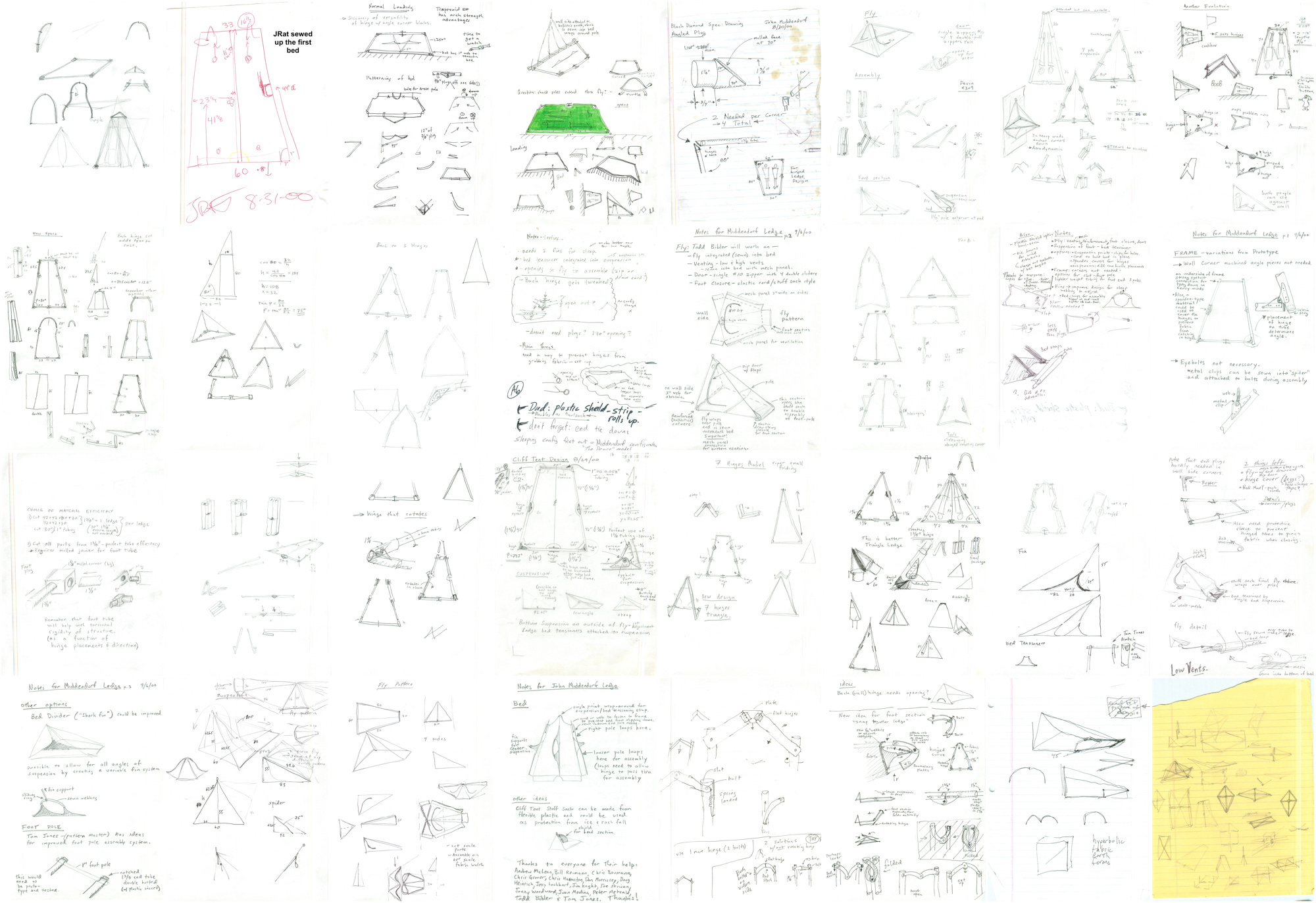

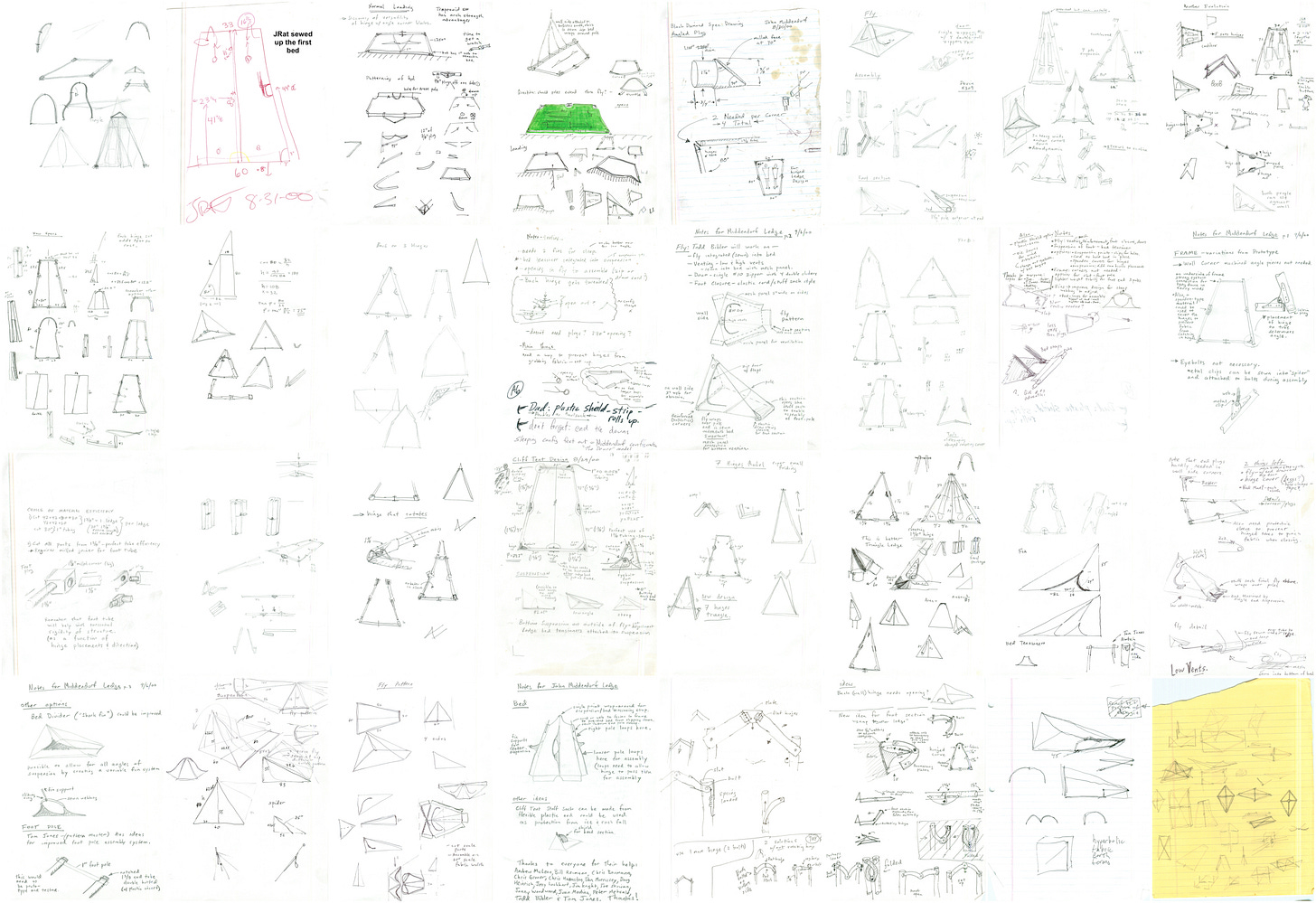

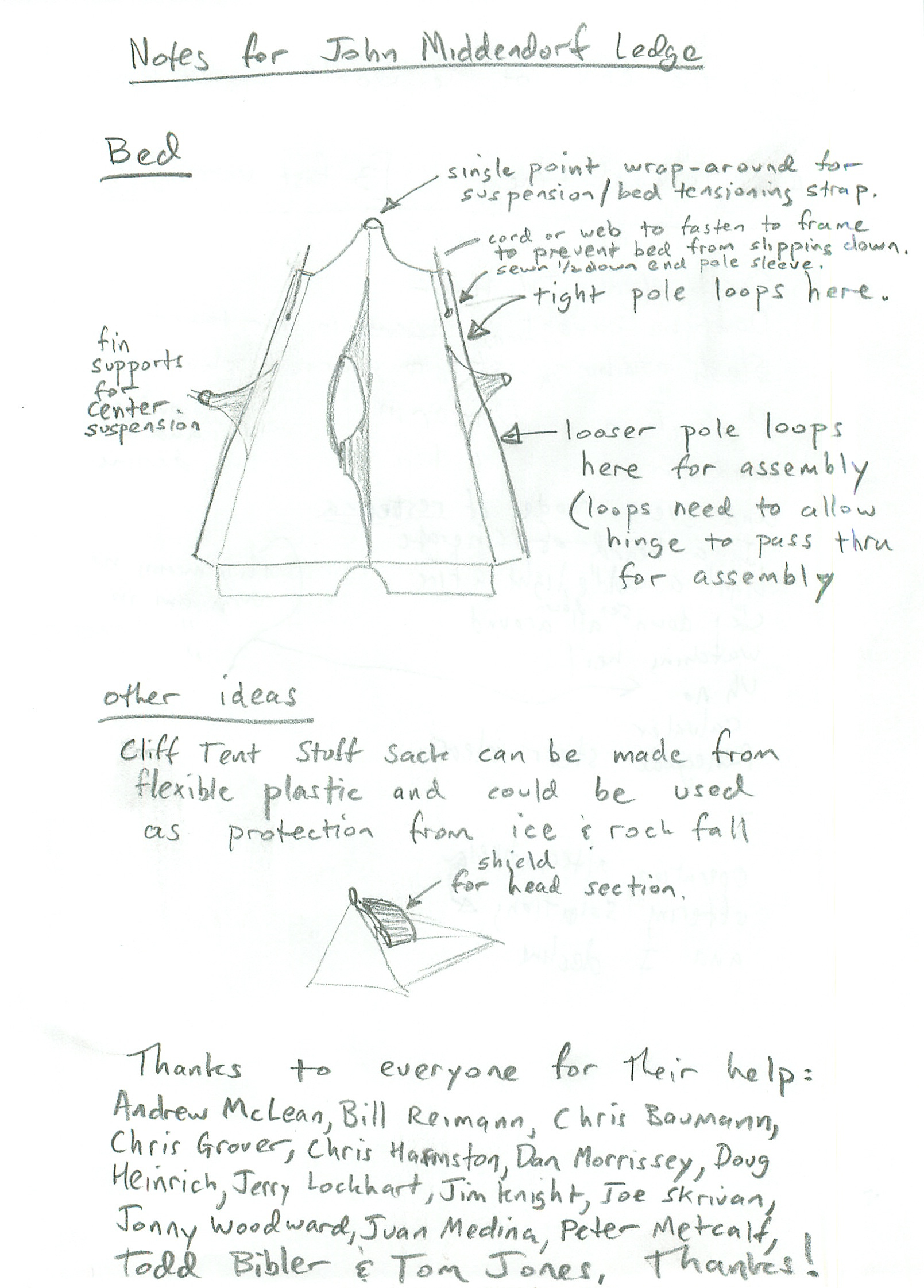

1999-2000 Jm notes
I made the first prototype at Black Diamond in Salt Lake City. After the first round of prototypes, Peter Metcalf decided he didn’t want to further pursue the design, and agreed that Black Diamond would not work on a “foot-out” design ledge without my involvement in the future.

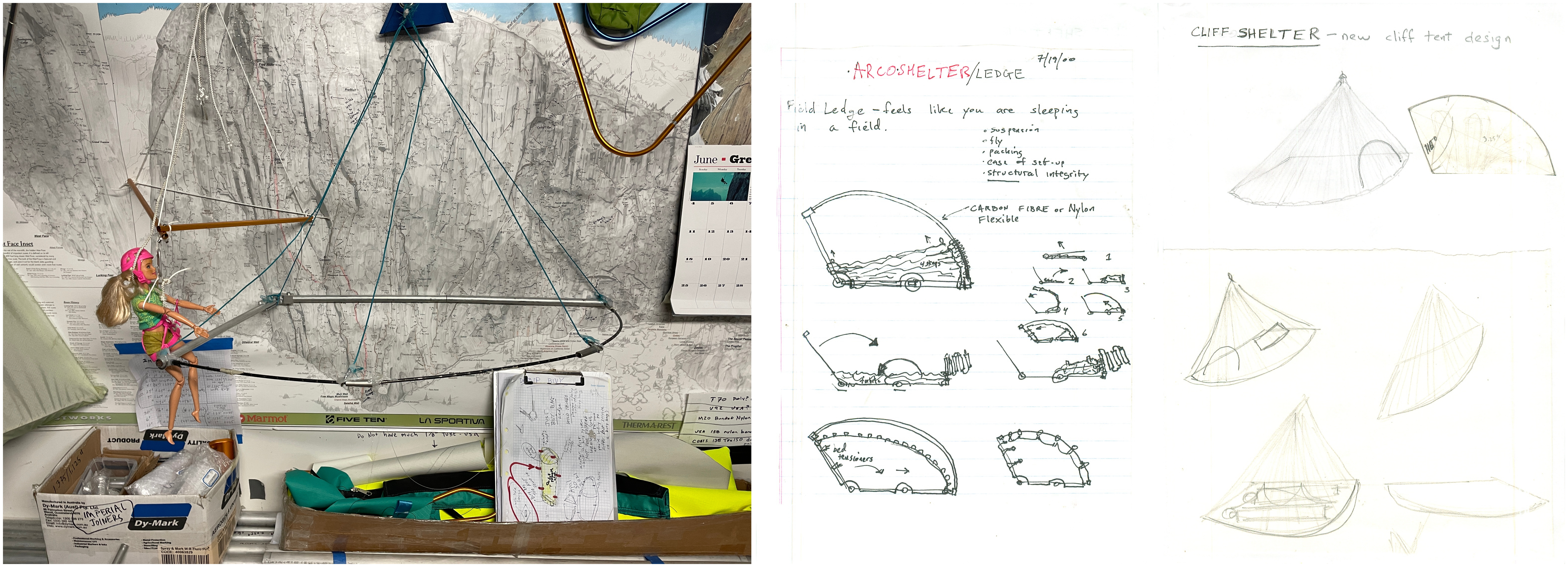

I was also working on this design at the time:

AcroShelter

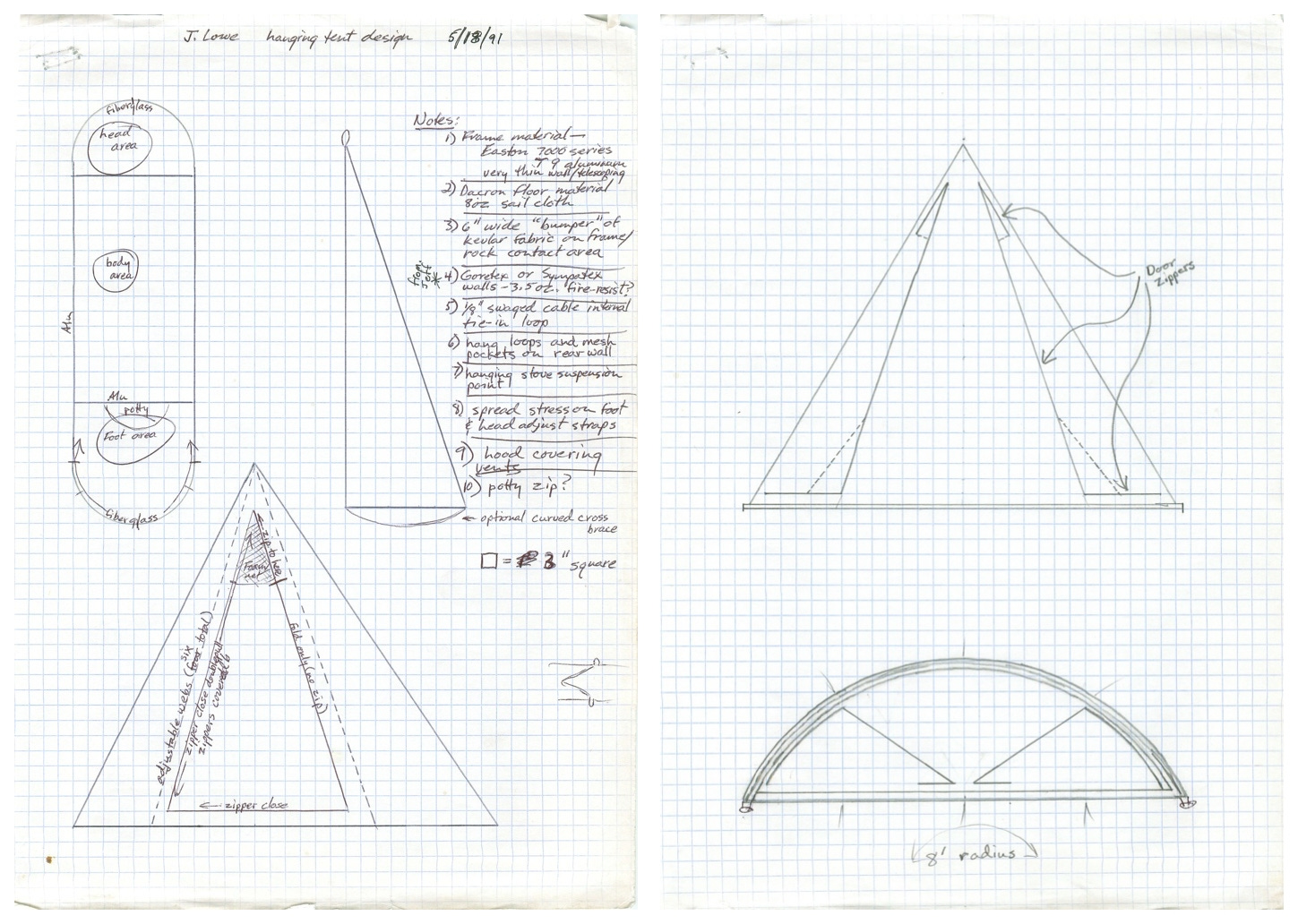

Related to the above design, Jeff Lowe had submitted this sketch to A5 in the 1980’s (prototypes were too floppy):
